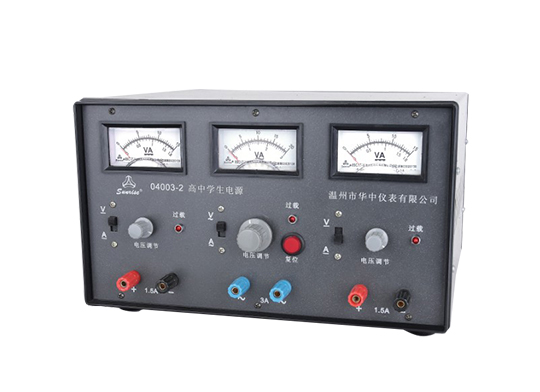

04003 high school student power supply
Technical indicators:
1, AC output:
A nominal voltage: 2V-4V-6V-8V-10V-12V-14V-16V a total of 8 files adjustable
B no-load voltage: ≤1.05U standard +0.5V
C full load voltage: ≥0.95U standard -0.3V
D output rated current 2A
E overload protection: 2*1.5A
2, DC regulated output:
A nominal voltage: 2V-4V-6V-8V-10V-12V-14V-16V a total of 8 files adjustable
B voltage offset: ± (2% U standard + 0.1V)
C voltage stability: ≤ (2% U standard + 0.1V)
D load stability: ≤ (2% U standard + 0.1V)
E ripple voltage: ≤ (0.1% + 5mV) (effective value)
F rated output current: 2A
G overload protection: 2*1.5A
